ゼロ相リアクトル
ゼロ相リアクトル用トロイダルコア (ナノ結晶)
-
YNL-553730G
外径55×内径37×高30mm -
YNL-805020G
外径80×内径50×高20mm -
YNL-704025G
外径70×内径40×高25mm -
YNL-1056030G
外径105×内径60×高30mm -
YNL-704025G/YNL-805020G/YNL-1005025G
YNL-553730G/YNL-644020G/YNL-704020G -

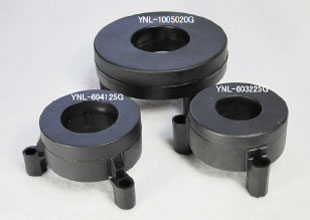

YNL-604125G/YNL-1005020G/YNL-603225G

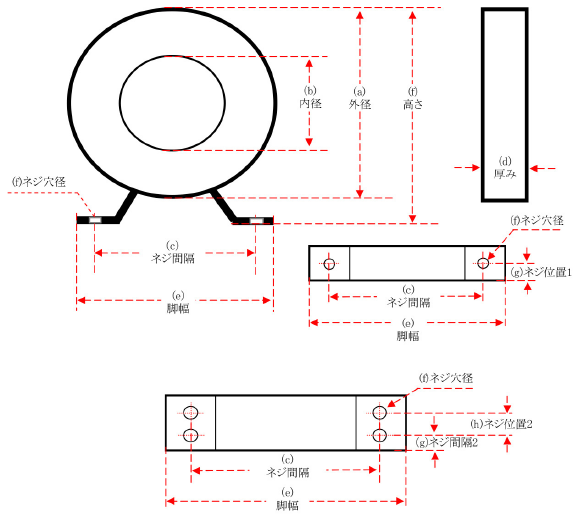

■サイズ表
| 型名 | コア 外径 |
コア 内径 |
コア 高さ |
a (mm) |
b (mm) |
c (mm) |
d (mm) |
e (mm) |
f (mm) |
g (mm) |
h (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YNL-553730G | 55 | 37 | 30 | 60 | 33 | 50.5 | 34 | 63.0 | 5.1 | 6.3 | |
| YNL-644020G | 64 | 40 | 20 | 69 | 36 | 53.0 | 25 | 63.0 | 5.2 | 5.6 | |
| YNL-704020G | 70 | 40 | 20 | 73 | 40 | 59.0 | 24 | 69.5 | 4.8 | 5.5 | |
| YNL-704025G | 70 | 40 | 25 | 75 | 36 | 61.0 | 30 | 69.5 | 4.7 | 4.3 | |
| YNL-805020G | 80 | 50 | 20 | 85 | 44 | 73.0 | 24 | 83.0 | 4.6 | 5.4 | |
| YNL-1005025G | 100 | 50 | 25 | 106 | 45 | 75.0 | 30 | 87.5 | 4.7 | 6.3 | 17.7 |

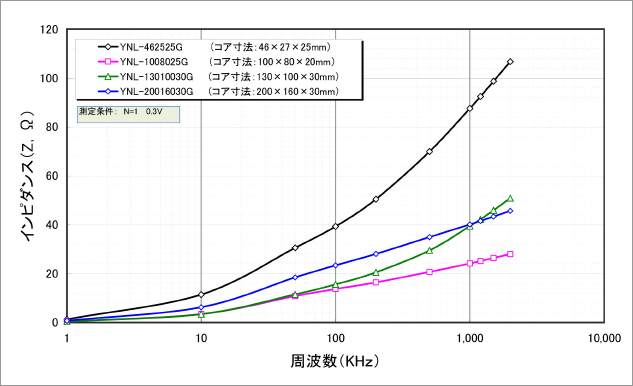

■Z-f特性 (YNLシリーズ、汎用タイプ)

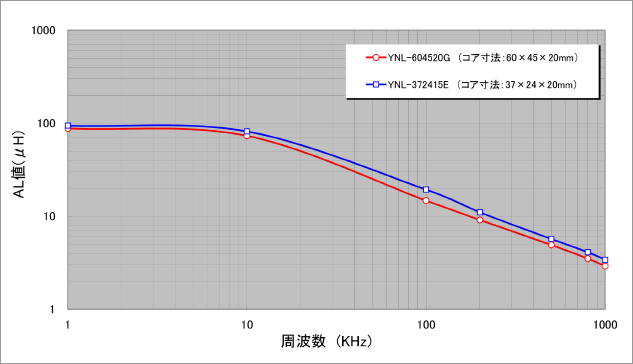

■周波数特性 (L/f Characteristics) / ナノ結晶コア(μ=80,000)
